Heavy Equipment Engines , Diesel Engine , Agriculture Machine , Farm Machinery Spare Parts

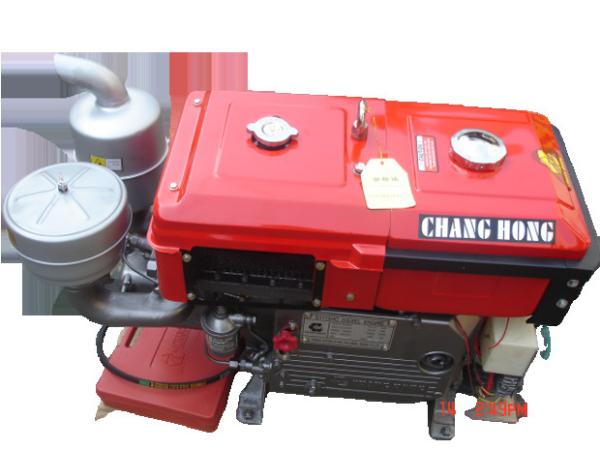

ZS1115NLDK IS A WATER COOLING SINGLE CYLINDER DIESEL ENGINE.THE DETAILED SPECIFICATION IS AS FOLLOWING :
| MODEL | ZS1115NLDK |
| TYPE | SINGLE CYLINDER,WATER CONDENSOR-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 115x115 |
| SPEED (RPM) | 2200 |
| CONTINUOUS OUTPUT (KW/HP) | 14.71/20 |
| MAXIMUM OUTPUT (KW/HP) | 16.17/22 |
| COMBUSTION SYSTEM | DIRECT INJECTION |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 247.6 |
| STARTING METHOD | ELECTRIC STARTER |
| LUBRICATING OIL CAPACITY (L) | 4 |
| WATER TANK CAPACITY (L) | 3.5 |
| FUEL TANK CAPACITY (L) | 12 |
| NET WEIGHT (KGS) | 195 |
| GROSS WEIGHT (KGS) | 215 |
| OVERALL DIMENSIONS (LXWXH:MM) | 920x440x750 |
| SET/20" CONTAINER | 96 |
| NOTE | WITH LIGHT |
IT IS BROADLY APPLY FOR AGRICULTURAL MACHINERY, SUCH AS RICE-MILLING MACHINE, WATER PUMP, TRACTOR, GENERATOR SETS, TRUCK ETC.
Startup mode
1) Hand start mode. Single cylinder diesel engine is usually started by hand, and the following steps are
taken when starting: 1) pulling the control handle up to the maximum throttle position and opening the fuel
tank switch; 2) turning the decompression handle to the "decompression" position; 3) when starting the
diesel engine with the start handle, the engine should stand on the left side of the machine in a horse-step
cubic manner, with the left hand holding the machine. The right hand holds the rocker, rotates the relief
handle to the relief position, then swings the crankshaft quickly, hears the injector emit a crisp sound of
fuel injection, suddenly puts down the relief handle, and the diesel engine can start.
2) Electric power start-up mode. Multi-cylinder diesel engines are usually started by electric power.
When starting, the following steps are usually taken: 1. Pull the governor handle to the middle speed
position and turn on the fuel tank switch; 2. Insert the ignition switch key into the ignition switch and
rotate to the "start" position, and the crankshaft of the diesel engine is rotated by the work of the electric
starter. Once activated, the key should be quickly loosened to "work" position.
Q&A:
Q1. What is your terms of packing?
A: We pack our goods in cartons or poly-wood case.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.Or L/C at sight.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q4:What to do if there is a problem with the product ?
A:We offer the spare parts for products all the time,any time you can contact us for spare parts.
